MONOBLOCK UNIT FOR SLUDGE DEHYDRATION AZ0630/04 AZ0630/07 AZ0630/11

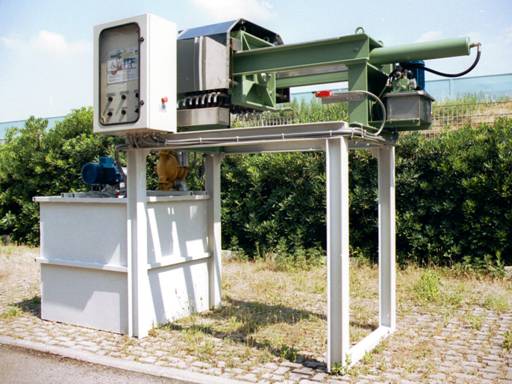

Monoblock structure comprising the following apparatus:

A. Pressing filter:

N° 1 Filter press with structure in arc welded steel Fe42, made up of two fixed heads, joined by bolted longerons, and a mobile head;

N° 1 Double acting oil hydraulic piston for the opening and closing of the filter pack .

N.1 Main oil hydraulic control unit, for the complete automation of the opening and closing filter pack cycle.

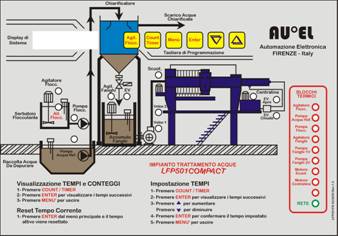

N. 1 Electric panel control unit for the complete automation using programmable PLC;

AZ0630/04	AZ0630/07	AZ0630/11
N° 4 Polypropylene plates (depending on the model), dimension 630X630mm, chamber thickness 25-45mm and plate thickness55mm, complete with sliding guide and filtered waste pipes with the possibility to visualize the filtered liquids;	N° 7 Polypropylene plates (depending on the model), dimension 630X630mm, chamber thickness 25-45mm and plate thickness55mm, complete with sliding guide and filtered waste pipes with the possibility to visualize the filtered liquids;	N° 11 Polypropylene plates (depending on the model), dimension 630X630mm, chamber thickness 25-45mm and plate thickness55mm, complete with sliding guide and filtered waste pipes with the possibility to visualize the filtered liquids;
N° 4 Polypropylene filtered cloth thermally stabilized and calendered, with centralized collar;	N° 7 Polypropylene filtered cloth thermally stabilized and calendered, with centralized collar;	N° 11 Polypropylene filtered cloth thermally stabilized and calendered, with centralized collar;
N° 4 Polypropylene backing cloth, thermally stabilized;	N° 7 Polypropylene backing cloth, thermally stabilized;	N° 11 Polypropylene backing cloth, thermally stabilized;

N. 1 Collecting conduit for filtered water, with level probe for controlling the pump feeding the filter ;

N.1 Shaking system for the filter plates using motor and chain link movements

N.1 Series of fairing, to shield from splashing, in stainless steel sheets, easily removable;

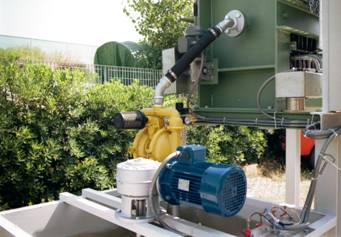

N.1 Feeding pump for the filter press, double membrane type, model DRV1,25 or equivalent, operating with compressed air;

N.1 Manual valve DN 50mm;

N.1 Series of accessories for assemblage;

B. - Accessories for the conditioning of the sludge for filtering.

N.1 Sludge transfer pump, specified for waste water from marble processing;

N.1 Metering pump PDS30, with regulated supply from 0 to 30 L/h;

N.1 Main control unit for the preparation of flocculating agent of 300 litres, made in polyethylene, in circular sections, complete with an electric mixer of adequate strength;

N.1 Tank for storage of the sludge, made with sheets of arc welded steel, with a capacity of approximately mc 1,00 (with 4 and 7 plates) or mc 1,5 (11 plates), complete with slow moving electric mixer;

N.1 Supporting structure for the filter press, made with arc welded steel, and painted with epoxy resin, in one unit, with tank for storage of the sludge.

Plant frame dimension	AZ0630/4	AZ0630/07	AZ0630/11
Length	2.700 mm	2.700 mm	3.800 mm
Width:	1.350 mm	1.350 mm	1.350 mm
Height from ground:	1.650.mm	1.650.mm	1.650.mm

Plant description:	AZ0630/04	AZ0630/07	AZ0630/11
Capacity of sludge treatment at entry:	0,30 mc/h	0,60 mc/h	1,00 mc/h
Filtered material:	Sludge with 27% dry residual material.
Volume of pressed sludge per cycle litres:	25¸45 circa	50¸91 circa	85¸150 c.a

Power capacity installed	N.B. For the correct functioning of the system there must be a compressed air line and an external air compressor supplying a minimum of 200-300 aspirated litres per minute.
Oil hydraulic main motor		Hp 5,50	Shaking System Motor	Hp 0,50
Mixing motor		Hp 2,00	Flocculating Agent Mixer Motor	Hp 0,50
Metering pump motor		Hp 0,25	Transfer Sludge Pump (optional)	Hp 2¸3

PRINCIPLE TECHNICAL DATA OF THE PRESS FILTER
Model	N. Plates	Dimension Plates mm	Thickness panels mm	Production litres/cycle	Filter surface area m²	Main motor Hp	Sludge pump Command	Mixer Command	Length mm	Width mm
FPSA06304SS	4	630X630	25/45	25/45	2,19	5,50	2,00	2,00	2000	1100
FPSA06307SS	7	630X630	25/45	50/91	4,38	5,50	2,00	2,00	2500	1100
FPSA06311SS	11	630X630	25/45	84/150	7,31	5,50	2,00	2,00	3800	1100
